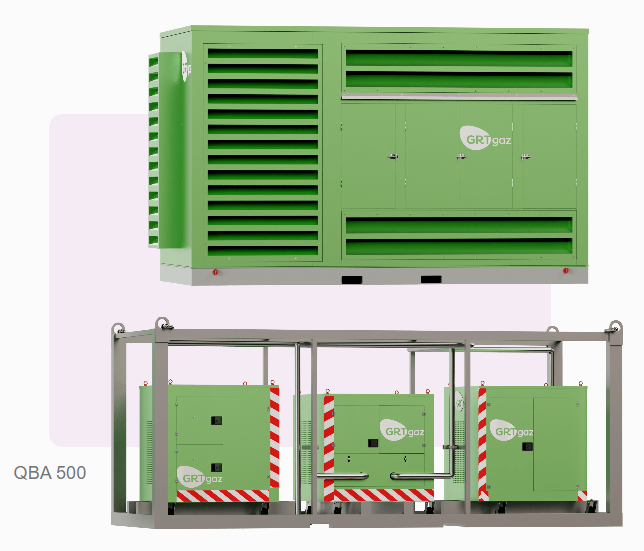

​​Quick Booster Access 500

​
The Quick Booster Access 500 is a booster developed with our partner Eiffage Métal which empties a pipeline by extracting the gas from the pipeline before recompressing it in the upstream or downstream network.

​Benefits of the QBA 500

1​

​​Day to set up

​​3

​​Operators needed

​0

​​Release of methane

​
​✓ Volumes: between 5 000 and 20 000 (n)m3

✓ Flow rate recompressed: by around 250 to 500 (n)m3/h

✓ Composition: a preliminary decompression module, 2 compressors, a bio-GNC heat engine and a PLC

✓ Suction pressure: reduced from 67 bars to 300 millibars

To take this a step further, GRTgaz intends to offer a booster in the next few years enabling recompression of flows of the order of 1,500 (n)m3/h.

​They have adopted the Gas Booster Access :

Sibelga

Need for Clarifications ?

​ Can QBA be used on volumes exceeding 2000 m³? ?
  QBA can be used on volumes exceeding 2000 m³. We recommend integrating BB in the final phase to maximize performance.

Is the QBA compatible with biomethane?Is the QBA compatible with biomethane?
 Yes, the QBA is compatible with biomethane, for example when the distribution network is full it can store biomethane and reinject it later.Yes, the QBA is compatible with biomethane, for example when the distribution network is full it can store biomethane and reinject it later.
